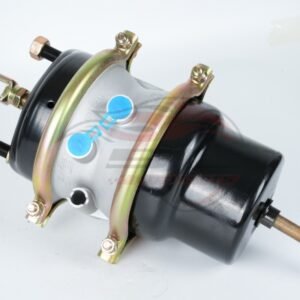

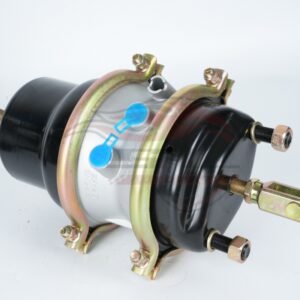

Why Choose Our T2424DD Air Brake Chambers?

With decades of specialized manufacturing expertise in commercial vehicle braking systems, we deliver premium air brake chambers designed for maximum reliability and performance in heavy-duty applications. Our T2424DD model represents the perfect combination of robust construction and precision engineering specifically for commercial vehicle rear axle installations. Here’s why fleet managers and maintenance professionals worldwide trust our product:

1. Heavy-Duty Steel Construction: Engineered from high-quality steel, our air brake chambers offer exceptional durability and impact resistance. The robust construction ensures reliable performance under maximum operating pressure of 1 MPa, providing long service life in the most demanding commercial vehicle applications.

2. Precision Rear Axle Performance: Specifically designed for rear position installation, our T2424DD chamber delivers optimal braking performance with 64mm stroke length and 120.7mm bolt centers. The design ensures perfect compatibility with various commercial vehicle brake systems.

3. Versatile Connection Options: Featuring multiple thread options including M16*1.5, 3/8″NPT, and 5/8″UNC/UNF, our air brake chambers provide flexible installation compatibility for different vehicle configurations and regional standards.

4. Extreme Environment Performance: Operating efficiently across a wide temperature range from -40°C to +80°C, our chambers maintain consistent performance in diverse climatic conditions, making them ideal for global commercial vehicle applications.

5. Quality Certified Excellence: Every air brake chamber undergoes rigorous testing and is manufactured under ISO/TS 16949 certification, ensuring compliance with the highest international standards for automotive quality and safety performance.

Professional Installation and Maintenance Guide

Safety First Protocol:

• Park on level ground and securely chock all wheels

• Completely depressurize air systems before beginning work

• Wear appropriate personal protective equipment

• Follow all manufacturer safety guidelines

Installation Procedure:

1. System Preparation:

• Fully release air pressure from brake system

• Clean mounting surface thoroughly

• Verify 120.7mm bolt center distance

2. Chamber Installation:

• Position chamber for rear axle installation

• Secure with appropriate bolts (M16*1.5 or 5/8″UNC)

• Torque to manufacturer’s specifications

• Connect air lines to preferred ports (M16*1.5 or 3/8″NPT)

3. Pushrod Connection:

• Connect pushrod (285mm total length) with appropriate thread

• Ensure proper alignment and smooth operation

• Verify all connections are secure

Maintenance Best Practices:

• Regular inspection every 25,000 miles or 3 months

• Check for air leaks at all connections

• Monitor pushrod stroke (64mm maximum)

• Inspect for corrosion or physical damage

• Maintain detailed service records

Performance Benefits:

• Consistent, reliable braking performance

• Excellent pressure response up to 1 MPa

• Reduced maintenance requirements

• Enhanced safety features

• Long service life in extreme conditions

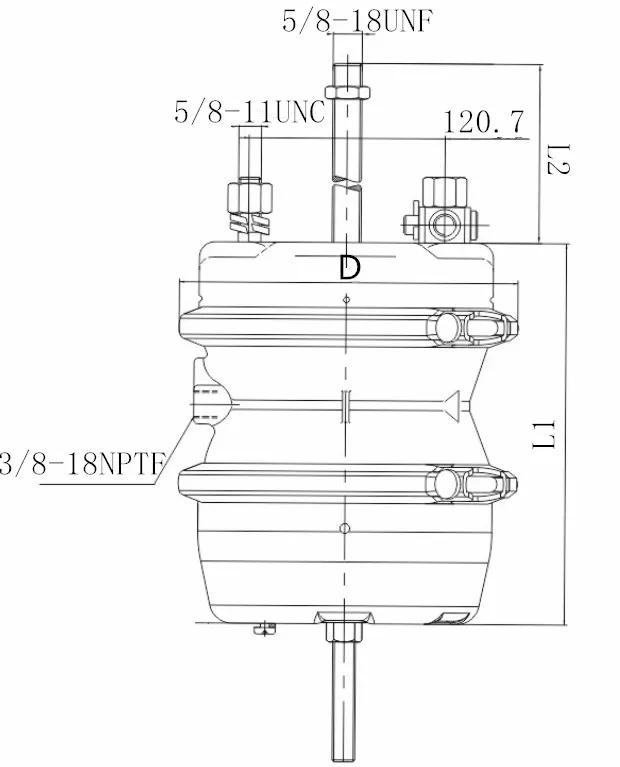

Technical Specifications:

• Stroke: 64/64mm

• Bolt Center: 120.7mm

• Operating Pressure: 800 kPa

• Max Pressure: 1 MPa

• Temperature Range: -40°C to +80°C

• Pushrod Length: 285mm

Troubleshooting Tips:

• If brake drag occurs, check pushrod adjustment

• For air leaks, inspect diaphragm and port connections

• If braking power decreases, verify stroke length

• Regular cleaning prevents corrosion buildup

Professional Recommendation: Always consult vehicle manufacturer’s specifications for proper installation procedures and torque values. Regular inspection of your air brake chambers is essential for maintaining optimal braking performance and overall vehicle safety. Our chambers are designed for easy maintenance and long-term reliability in commercial applications.
