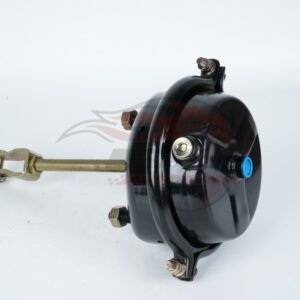

Heavy-Duty T302 Brake Chamber for Semi Truck Applications
Premium T302 brake chamber semi truck component with heavy-duty steel housing. Front position installation, 50pc MOQ. Global shipping available.
Basic Info.
- Model NO. T302
- Type: Brake Chamber
- Material: Steel
- Position: Front
- Certification: ISO/TS16949
- Classification: Disc
- Drum Brakes Classification: Brake Drum
- Main Market: South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
- Transport Package: Carton
- Specification: 350 x 116 x 109
- MOQ: 50 PCS
- Origin: China
- HS Code: 87089390
- Production Capacity: 50000 pcs/ year
- Package Size: 120.00cm * 100.00cm * 100.00cm
- Package Gross Weight: 200.000kg
Product Description of T302 brake chamber semi truck
| Double Brake Chamber Types & Specifications | |||||||||||
| Item No. | Stroke (mm) | R1 (mm) | R2 (mm) | L1 | L2 | L3 | T1 | T2 | T3 | An | (Kg |
| Push Rod Thread Length | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Mounting Angle included Band& Mounting Bolt | weight | ||||||
| T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16×1.5 | M16×1.5 | M16×1.5 | 90° | 7.78 |
| T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 8.10 |
| T2424EY4 | 64 | 116 | 93 | 224±3 | 240±5 | 245±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 8.10 |
| T2424EB1 | 64 | 116 | 93 | 224±5 | 100±5 | 100±4 | M16×1.5 | M16×1.5 | M16×1.5 | 90° | 8.00 |
| T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 90° | 9.20 |
| T2430MB | 64 | 163 | 184 | 230±5 | 220±5 | 188±4 | M16×1.5 | M16×1.5 | M16×1.5 | 0° | 9.20 |
| T2430MB1 | 64 | 163 | 184 | 230±5 | 240±5 | 209±4 | M16×1.5 | M16×1.5 | M16×1.5 | 45° | 9.20 |
| T2430EB1 | 64 | 163 | 184 | 230±5 | 240±5 | 207±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.20 |
| T2430LEB | 76.2 | 163 | 184 | 265±5 | 240±8 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.50 |
| T2430LMB | 76.2 | 163 | 184 | 265±5 | 240±8 | 209±4 | M16×1.5 | M16×1.5 | M16×1.5 | 45° | 9.50 |
| T2430LMB1 | 76.2 | 163 | 184 | 265±5 | 240±8 | 209±4 | M16×1.5 | M16×1.5 | M16×1.5 | 0° | 9.50 |
| T2430T | 68 | 163 | 184 | 260±5 | 240±5 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.40 |
| T2430LS | 68 | 163 | 184 | 260±5 | 240±5 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.50 |
| T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.50 |
| T3030YB | 64 | 125 | 105 | 238±5 | 285±5 | 255±4 | M16×1.5 | 3/8″-18NPTF | M16×1.5 | 40° | 9.50 |
| T3030EY2 | 64 | 125 | 105 | 238±5 | 240±5 | 209±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.40 |
| T3030MB2 | 64 | 125 | 105 | 238±5 | 285±5 | 255±4 | M16×1.5 | M16×1.5 | M16×1.5 | 45° | 9.50 |
| T3030MY1 | 64 | 125 | 105 | 238±5 | 220±5 | 188±4 | M16×1.5 | 3/8″-18NPTF | M16×1.5 | 0° | 9.50 |
| T3030HP | 64 | 125 | 105 | 238±5 | 285±5 | 255±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.50 |
| T3030MB | 64 | 125 | 105 | 238±5 | 220±5 | 50 | M16×1.5 | 3/8″-18NPTF | M16×1.5 | 0° | 9.50 |
| T3030MY | 64 | 125 | 105 | 238±5 | 220±5 | 188±4 | M16×1.5 | 3/8″-18NPTF | M16×1.5 | 0° | 9.50 |
Product Description of T302 brake chamber semi truck
Production process
Packaging& Shipping
Why Choose Our T302 Brake Chamber for Semi Trucks?
With decades of specialized manufacturing expertise in heavy-duty commercial vehicle braking systems, we deliver premium brake chamber semi truck solutions engineered for maximum reliability and performance. Our T302 model represents the pinnacle of braking technology, specifically designed for the rigorous demands of semi-truck applications. Here’s why fleet managers and technicians worldwide trust our product:
Heavy-Duty Steel Construction: Engineered from premium-grade steel, our brake chamber semi truck component offers exceptional durability and impact resistance. The robust housing ensures reliable performance under extreme pressure conditions, providing long service life in the most demanding semi-truck operations.
Precision Engineering for Semi-Trucks: Specifically designed for heavy-duty semi-truck applications, our T302 chamber delivers optimal braking performance with perfect compatibility for front position installation. The precision manufacturing ensures seamless integration with existing semi-truck brake systems.
Certified Quality Excellence: Every brake chamber undergoes rigorous testing and is manufactured under ISO/TS 16949 certification, ensuring compliance with the highest international standards for automotive quality and safety performance in commercial trucking applications.
Global Semi-Truck Compatibility: Designed to meet diverse international requirements, our T302 chambers are trusted by semi-truck operators across North America, South America, Europe, and Asia. They deliver consistent performance in various climatic and operational conditions.
Proven Reliability: With a production capacity of 50,000 units annually and comprehensive quality control measures, we ensure consistent performance that semi-truck fleets can depend on for safe operations and minimal downtime.
Professional Installation and Maintenance Guide
Safety First Protocol:
Park on level ground and securely chock all wheels
Completely depressurize air systems before beginning work
Wear appropriate personal protective equipment
Follow all manufacturer safety guidelines
Installation Procedure:
System Preparation:
Fully release air pressure from brake system
Clean mounting surface thoroughly
Inspect all components for damage or wear
Chamber Installation:
Position chamber for front axle installation
Secure with appropriate mounting hardware
Torque fasteners to manufacturer’s specifications
Connect air lines ensuring proper sealing
System Verification:
Check all connections for air leaks
Verify smooth pushrod operation
Test brake function before returning to service
Maintenance Best Practices:
Regular inspection every 25,000 miles or 3 months
Check for air leaks at connections and diaphragm
Monitor pushrod travel and adjustment
Inspect for corrosion or physical damage
Maintain detailed service records
Performance Benefits:
Consistent, reliable braking performance
Excellent air pressure response
Reduced maintenance requirements
Enhanced safety features for semi-trucks
Long service life in demanding conditions
Technical Specifications:
Model: T302
Material: Heavy-duty steel
Position: Front installation
Certification: ISO/TS 16949
Production Capacity: 50,000 units/year
Troubleshooting Tips:
If brake drag occurs, check pushrod adjustment
For air leaks, inspect diaphragm and connections
If braking power decreases, verify stroke length
Regular cleaning prevents corrosion buildup
Professional Recommendation: Always consult semi-truck manufacturer’s specifications for proper installation procedures and torque values. Regular inspection of your brake chamber semi truck components is essential for maintaining optimal braking performance and overall vehicle safety. Our chambers are designed for easy maintenance and long-term reliability in heavy-duty semi-truck applications.
FAQ of T302 brake chamber semi truck
Q: Are you trading company or factory?
A: We are the manufacturer.
Q: What’s the MOQ for each item?
A: Usually the MOQ is 100pcs for each type. If color box is requested, the MOQ is 200pcs.
Q: What about the delivery time?
A: It’s about 1 to 5 days for the goods have in stock, 15 to 30 days for the goods need to be manufactured based on your order.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages
before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Final Call to Action (CTA)
📞 Contact us now for bulk orders (MOQ 50 PCS) and competitive pricing!
🌍 Ships globally – Serving North America, Europe, Africa, Asia, and more.
🛠️ OEM & Custom Solutions Available – Tailored to your requirements.
🚛 Join Our Facebook Community for Brake System Professionals! 🛠️
This Brake Chamber isn’t just a part—it’s a critical safety upgrade for any heavy-duty braking system. Get yours today!
