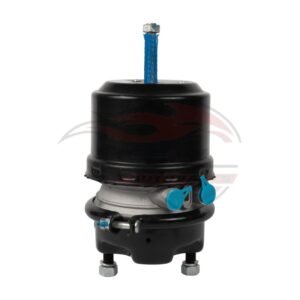

High Quality Durable Brake Booster Air Spring Truck T2424 Dp Brake Chamber Actuator for Trailer Bus
Our T2424 DP Air Brake Chamber delivers reliable braking performance for commercial vehicles worldwide. Built with heavy-duty steel construction, this chamber meets rigorous ISO/TS16949 quality standards.
Basic Info.
- Model NO. T2424 DP
- Type: Brake Chamber
- Material: Steel
- Position: Front
- Certification: ISO/TS16949
- Classification: Disc
- Drum Brakes Classification: Brake Drum
- Main Market: South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
- Transport Package: Carton
- Specification: 350 x 116 x 109
- MOQ: 50 PCS
- Origin: China
- HS Code: 87089390
- Production Capacity: 50000 pcs/ year
- Package Size: 120.00cm * 100.00cm * 100.00cm
- Package Gross Weight: 200.000kg
Product Description of T2424 DP Air Brake Chamber
- A = Length from mounting bracket to end of Spring Housing
- B = Length of Piggyback
- C = Dimension at rolled Spring Housing flange
- D = Dimension at Service Clampband
- E = Stud Spacing 4.75 in. (120.7mm)
- J = Pushrod Length from face of Service Housing
- K = Distance to Clevis Pin centerline from face of Service Housing
- S1 = Service Clampband position (0°)
- T = Air Port position (90°)
- Stud Type: 5/8-11 UNC Grade 5
Stud Length: 1.50 in. (38.1mm)
Pushrod Thread: 5/8-18 UNF
Air Port Threads: 3/8-18 NPTF
Maximum Air Pressure: 150 psi - Replaces 2424005 and 52424005
Stroke: 64mm
Bolt Center: 120.7mm
Bolt Thread: M16*1.5
Port Thread: M16*1.5
Push Rod Thread: M16*1.5
Push Rod Length: 330mm
OEM: Acceptable
Transport Package: Box or Pallets
Pictures and Specifications of T2424 DP Air Brake Chamber
| Double Brake Chamber Types & Specifications | |||||||||||
| Item No. | Stroke (mm) | R1 (mm) | R2 (mm) | L1 | L2 | L3 | T1 | T2 | T3 | An | (Kg |
| Push Rod Thread Length | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Mounting Angle included Band& Mounting Bolt | weight | ||||||
| T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16×1.5 | M16×1.5 | M16×1.5 | 90° | 7.78 |
| T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 8.10 |
| T2424EY4 | 64 | 116 | 93 | 224±3 | 240±5 | 245±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 8.10 |
| T2424EB1 | 64 | 116 | 93 | 224±5 | 100±5 | 100±4 | M16×1.5 | M16×1.5 | M16×1.5 | 90° | 8.00 |
| T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 90° | 9.20 |
| T2430MB | 64 | 163 | 184 | 230±5 | 220±5 | 188±4 | M16×1.5 | M16×1.5 | M16×1.5 | 0° | 9.20 |
| T2430MB1 | 64 | 163 | 184 | 230±5 | 240±5 | 209±4 | M16×1.5 | M16×1.5 | M16×1.5 | 45° | 9.20 |
| T2430EB1 | 64 | 163 | 184 | 230±5 | 240±5 | 207±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.20 |
| T2430LEB | 76.2 | 163 | 184 | 265±5 | 240±8 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.50 |
| T2430LMB | 76.2 | 163 | 184 | 265±5 | 240±8 | 209±4 | M16×1.5 | M16×1.5 | M16×1.5 | 45° | 9.50 |
| T2430LMB1 | 76.2 | 163 | 184 | 265±5 | 240±8 | 209±4 | M16×1.5 | M16×1.5 | M16×1.5 | 0° | 9.50 |
| T2430T | 68 | 163 | 184 | 260±5 | 240±5 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.40 |
| T2430LS | 68 | 163 | 184 | 260±5 | 240±5 | 206±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.50 |
| T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.50 |
| T3030YB | 64 | 125 | 105 | 238±5 | 285±5 | 255±4 | M16×1.5 | 3/8″-18NPTF | M16×1.5 | 40° | 9.50 |
| T3030EY2 | 64 | 125 | 105 | 238±5 | 240±5 | 209±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.40 |
| T3030MB2 | 64 | 125 | 105 | 238±5 | 285±5 | 255±4 | M16×1.5 | M16×1.5 | M16×1.5 | 45° | 9.50 |
| T3030MY1 | 64 | 125 | 105 | 238±5 | 220±5 | 188±4 | M16×1.5 | 3/8″-18NPTF | M16×1.5 | 0° | 9.50 |
| T3030HP | 64 | 125 | 105 | 238±5 | 285±5 | 255±4 | 5/8″-18UNF2A | 3/8″-18NPTF | 5/8″-11UNC2A | 45° | 9.50 |
| T3030MB | 64 | 125 | 105 | 238±5 | 220±5 | 50 | M16×1.5 | 3/8″-18NPTF | M16×1.5 | 0° | 9.50 |
| T3030MY | 64 | 125 | 105 | 238±5 | 220±5 | 188±4 | M16×1.5 | 3/8″-18NPTF | M16×1.5 | 0° | 9.50 |
Product Description of T2424 DP Air Brake Chamber
Production process
Packaging& Shipping
Why Choose Our T2424 DP Air Brake Chamber?
With decades of specialized manufacturing expertise in commercial vehicle braking systems, we deliver premium air brake chamber solutions designed for maximum reliability and performance in demanding transportation applications. Our T2424 DP model represents the perfect combination of robust construction and precision engineering for heavy-duty trucks, trailers, and buses. Here’s why fleet managers and maintenance professionals worldwide trust our product:
Heavy-Duty Steel Construction: Engineered from high-quality steel, our air brake chamber offers exceptional durability and impact resistance. The robust construction ensures reliable performance under maximum air pressure of 150 PSI, providing long service life in the most challenging operating conditions.
Precision Engineering: Designed with standardized 3/8-18 NPTF air ports and 5/8-18 UNF pushrod threads, our T2424 DP chamber guarantees perfect compatibility and seamless integration with existing brake systems. The 64mm stroke provides optimal braking performance for various commercial vehicle applications.
Quality Certified Excellence: Every air brake chamber undergoes rigorous testing and is manufactured under ISO/TS 16949 certification, ensuring compliance with international automotive quality and safety standards.
Universal Replacement Compatibility: Designed as exact replacements for OEM numbers 2424005 and 52424005, our chambers provide perfect fitment and reliable performance across multiple vehicle platforms and applications.
Global Reliability: Trusted in markets across North America, South America, Europe, Asia, and beyond, our brake chambers deliver consistent performance in diverse climatic conditions and demanding transportation environments.
Professional Installation and Maintenance Guide
Safety First Protocol:
Park on level ground and securely chock all wheels
Completely depressurize air systems before beginning work
Wear appropriate personal protective equipment
Follow all manufacturer safety guidelines
Installation Procedure:
System Preparation:
Fully release air pressure from brake system
Clean mounting surface thoroughly
Inspect all components for damage or wear
Chamber Installation:
Position chamber with proper orientation
Secure with M16*1.5 mounting bolts (120.7mm center)
Torque to manufacturer’s specifications
Connect air lines to M16*1.5 ports
Linkage Connection:
Connect pushrod with M16*1.5 thread (330mm length)
Ensure proper clevis pin installation
Verify smooth operation without binding
Maintenance Best Practices:
Regular inspection every 25,000 miles or 3 months
Check for air leaks at connections and diaphragm
Monitor pushrod travel (maximum 64mm)
Inspect for corrosion or physical damage
Maintain detailed service records
Performance Benefits:
Consistent, reliable braking performance
Excellent air pressure response and modulation
Reduced maintenance requirements
Enhanced safety features
Long service life in demanding conditions
Technical Specifications:
Stroke: 64mm
Bolt Center: 120.7mm
Bolt Thread: M16*1.5
Port Thread: M16*1.5
Push Rod Thread: M16*1.5
Push Rod Length: 330mm
Maximum Pressure: 150 PSI
Troubleshooting Tips:
If brake drag occurs, check pushrod adjustment
For air leaks, inspect diaphragm and port connections
If braking power decreases, verify stroke length
Regular cleaning prevents corrosion buildup
Professional Recommendation: Always consult vehicle manufacturer’s specifications for proper installation procedures and torque values. Regular inspection of your air brake chamber is essential for maintaining optimal braking performance and overall vehicle safety. Our chambers are designed for easy maintenance and long-term reliability in commercial applications.
