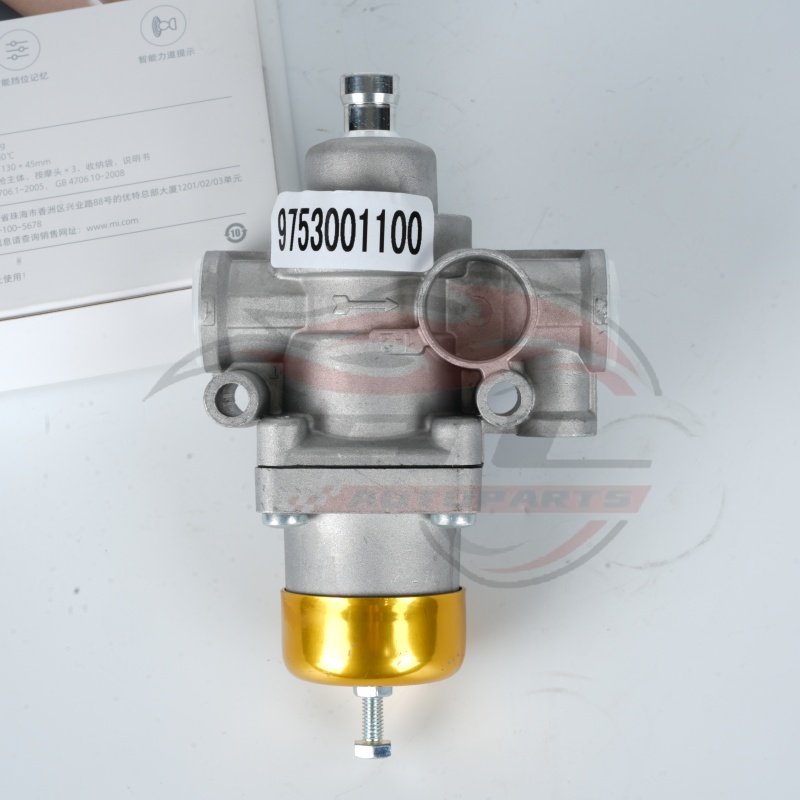

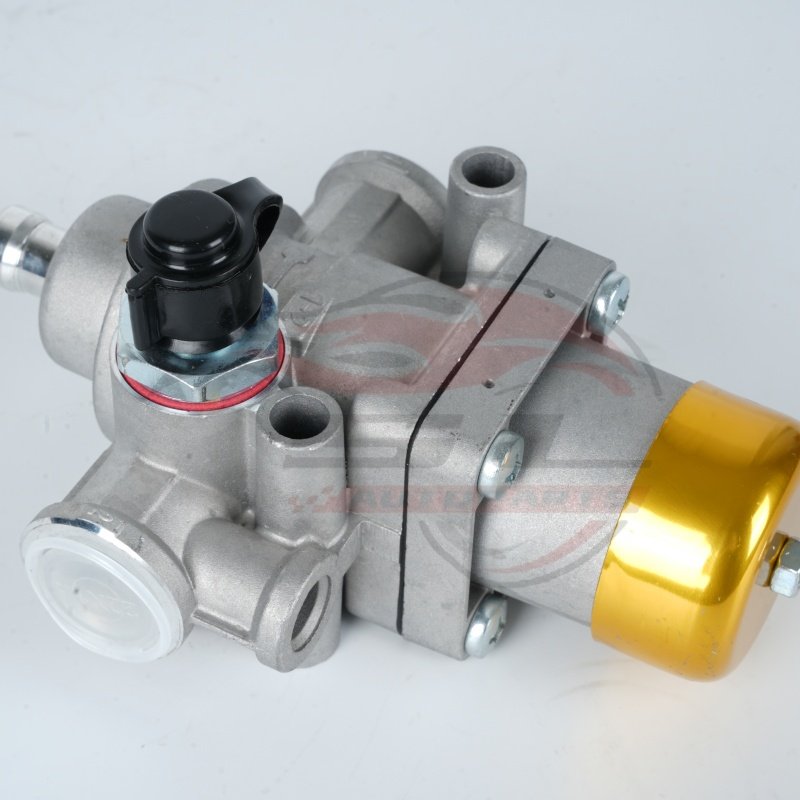

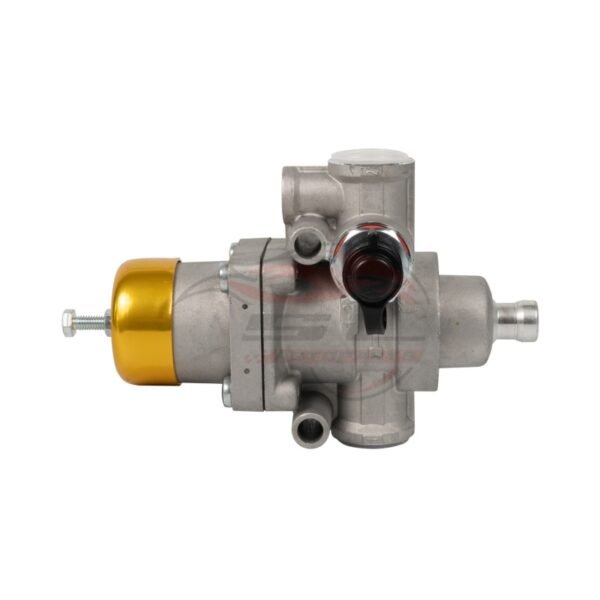

Heavy-Duty Cylinder Clutch Booster System (9753001100) for Commercial Vehicles
Our Cylinder Clutch Booster system (Model 9753001100) delivers superior performance for commercial vehicles, combining robust cylinder clutch technology with booster functionality in one durable steel unit.
Basic Info.
- Model NO. 9753001100
- Type: Brake System
- Material: Steel
- Classification: Clutch Servo
- Product Name: Clutch Servo/ Clutch Booster
- OEM Number: 0024081000
- Part Number: 0481039110
- MOQ: 100PCS
- Sample: Available
- Sample Time: 10 Days
- Transport Package: Cartons
- Certification: ISO/TS16949, ISO9001
- Specification: Standard
- Main Market: South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Northern Europe, Oceania, Southern Europe, Central America, South Asia
- Service: 24hours
- Origin: China
- HS Code: 8708309990
- Production Capacity: 500000PCS/Month
Product Description of Cylinder Clutch Booster system
- Port Thread 1: M22 X 1.5
- Port Thread 21: M22 X 1.5
- Port Threads: M22 X 1.5
- Operational Range: 8.70+5.80 Psi
- Cut-out Pressure: 117.48±2.90 Psi
- Max. Operating Pressure: 217.6 Psi
- Port Thread 1-2: Tyre Inflation 1-2: Available (M16 X 1.5)
- Size (mm X mm X mm): 172X134X119
- Condition: New
Packaging & Delivery of Cylinder Clutch Booster system
- Package Size: 20.00cm * 20.00cm * 20.00cm
- Package Gross Weight: 3.000kg
This product is a premium Cylinder Clutch booster system with model number 9753001100, designed to deliver superior performance for commercial vehicles. This integrated cylinder clutch and booster unit combines robust hydraulic cylinder technology with pneumatic booster functionality in a single durable steel construction. Certified to ISO/TS16949 and ISO9001 quality standards, this cylinder clutch system ensures reliable operation and precise clutch control under demanding conditions.
The technical specifications of this cylinder clutch booster include multiple M22 X 1.5 port threads and tire inflation capability through M16 X 1.5 ports. With an operational range of 8.70+5.80 Psi, the system features a maximum operating pressure of 217.6 Psi and a cut-out pressure of 117.48±2.90 Psi. The compact dimensions of 172X134X119 mm make this cylinder clutch unit suitable for various commercial vehicle applications while maintaining optimal performance.
This cylinder clutch booster is compatible with multiple major vehicle brands including DAF (1505157), IVECO (500005822), Mercedes-Benz (0024314906), and Renault (0024081000). It corresponds to numerous reference numbers from leading suppliers such as WABCO (9753001100, 9753001010, 9753001180), Bosch (0481039110, 0481039221), Bendix (AC135FX), and Knorr-Bremse (DR3200).
With a minimum order quantity of 100 pieces and sample availability within 10 days, this cylinder clutch system is produced in China with a substantial monthly capacity of 500,000 units. The product is packaged securely in protective cartons measuring 20×20×20 cm with a gross weight of 3.000 kg, ensuring safe transportation to global markets including the Americas, Europe, Asia, Africa, and Oceania. Each cylinder clutch unit undergoes rigorous quality control to ensure durability and reliable performance in heavy-duty commercial vehicle applications.
OEM Numbers
| Brand | Part Numbers |
|---|---|
| DAF | 1505157 |
| IVECO | 500005822 |
| MERCEDES-BENZ | 0024314906 |
| RENAULT | 0024081000 |
Reference Numbers
| Supplier | Part Numbers |
|---|---|
| AIR FREN | 07.015467 |
| BENDIX | AC135FX |
| BOSCH | 0481039101, 0481039110, 0481039221 |
| COJALI | 2228112, 2328400 |
| DT Spare Parts | 4.64600 |
| GRAU | 312013014, 312017012, 312029014, 312030001 |
| HALDEX | 312017014 |
| KNORR-BREMSE | DR3200 |
| WABCO | 4604910, 4604938, 4604956, 4606844, 4607764, 9753001010, 9753001100, 9753001180, 9753002100, 9753005020, 9753034600 |
Related product we can supply:
| 1 | WG9114230025 | for Chinese truck |
| 2 | WG9114230023 | for Chinese truck |
| 3 | WG9114230022 | for Chinese truck |
| 4 | 41700-7D000 | for Japanese truck |
| 5 | 642-03803 | for Japanese truck |
| 6 | 642-03505 | for Japanese truck |
| 7 | 642-03502 | for Japanese truck |
| 8 | 642-03080 | for Japanese truck |
| 9 | K013727N50 | for Japanese truck |
| 10 | K126903N05 | for Japanese truck |
| 11 | 625586AM | for Japanese truck |
| 12 | 625359AM | for Japanese truck |
| 13 | 622199AM | for Japanese truck |
| 14 | 627479AM | for Japanese truck |
| 15 | 622190AM | for Japanese truck |
| 16 | 622107AM | for Japanese truck |
| 17 | VG3268 | for Japanese truck |
| 18 | VG3288 | for Japanese truck |
| 19 | VG3361 | for Japanese truck |
| 20 | VG3285 | for Japanese truck |
| 21 | VG3261 | for Japanese truck |
| 22 | VG3229 | for Japanese truck |
| 23 | VG3213 | for Japanese truck |
| 24 | VG3208 | for Japanese truck |
| 25 | VG3204 | for Japanese truck |
| 26 | VG3200 | for Japanese truck |
| 27 | 63566103 | for Japanese truck |
| 28 | APGA1610/4 | for Japanese truck |
| 29 | APGA16XX | for Japanese truck |
| 30 | APGA1605/P | for Japanese truck |
| 31 | 9700514550 | for Japanese truck |
| 32 | 9705104460 | for Japanese truck |
Why Choose Our Cylinder Clutch Booster System (9753001100)?
With decades of specialized manufacturing expertise in commercial vehicle systems, we deliver premium cylinder clutch booster solutions designed for maximum reliability and performance in heavy-duty applications. Our 9753001100 model represents the perfect integration of robust cylinder clutch technology and booster functionality. Here’s why fleet managers and maintenance professionals worldwide trust our product:
Heavy-Duty Pressure Performance: Engineered for commercial vehicle demands, our cylinder clutch booster operates at maximum pressures of 217.6 PSI, with precise cut-out pressure of 117.48±2.90 PSI and operational range of 8.70+5.80 PSI. The robust steel construction ensures reliable performance in the most demanding conditions.
Universal Commercial Vehicle Compatibility: Designed as an exact replacement for multiple OEM numbers including 0024081000 and 0481039110, our cylinder clutch provides comprehensive coverage for major brands including DAF, IVECO, Mercedes-Benz, and Renault, making it ideal for diverse fleet maintenance needs.
Advanced Port Configuration: Featuring M22×1.5 port threads throughout and including tire inflation functionality (M16×1.5), our cylinder clutch booster offers versatile connection options and additional utility for commercial vehicle operations.
Compact Heavy-Duty Design: Despite its compact dimensions (172×134×119mm) and manageable weight, our cylinder clutch booster delivers full-scale commercial performance, making it suitable for various vehicle configurations and space constraints.
Quality Certified Excellence: Every cylinder clutch booster undergoes rigorous testing and is manufactured under both ISO/TS 16949 and ISO9001 certifications, ensuring compliance with the highest international quality and safety standards.
Professional Installation Guide
Safety First Protocol:
Secure vehicle on level ground with parking brake engaged
Depressurize all air systems before beginning work
Use appropriate personal protective equipment
Follow all manufacturer safety guidelines
Installation Procedure:
System Preparation:
Completely depressurize clutch and air systems
Clean mounting surfaces thoroughly
Inspect all connection points for wear or damage
Unit Installation:
Position cylinder clutch booster with proper orientation
Secure with appropriate mounting hardware
Torque fasteners to manufacturer’s specifications
Connect air lines to M22×1.5 port threads
System Testing:
Check all connections for proper sealing
Test pressure regulation functionality
Verify tire inflation feature operation
Ensure proper clutch engagement and disengagement
Maintenance Best Practices:
Regular inspection of air pressure levels
Check for leaks at all connections and seals
Monitor pressure regulation performance
Inspect tire inflation functionality
Maintain detailed service records
Performance Benefits:
Precise pressure regulation capabilities
Reduced clutch pedal effort
Reliable performance in extreme conditions
Additional tire inflation functionality
Long service life in heavy-duty applications
Technical Specifications:
Maximum Pressure: 217.6 PSI
Cut-out Pressure: 117.48±2.90 PSI
Operational Range: 8.70+5.80 PSI
Port Threads: M22×1.5 (main), M16×1.5 (tire inflation)
Dimensions: 172×134×119 mm
Troubleshooting Tips:
If pressure regulation is inconsistent, check valve functionality
For air leaks, inspect all connection points and seals
If clutch engagement feels rough, check for air in the system
Regular cleaning prevents contamination and ensures optimal performance
Professional Recommendation: Always consult vehicle manufacturer’s specifications for proper installation procedures and pressure settings. Regular maintenance of your cylinder clutch booster system is essential for ensuring optimal clutch performance and overall vehicle safety in commercial applications.
