Heavy-Duty Brake Chamber T16 for Commercial Vehicles
Our T16 Brake Chamber delivers reliable braking performance for commercial vehicles, featuring robust steel construction and precision engineering for demanding applications.
Basic Info.
- Model NO. T16
- Type: Brake Chamber
- Material: Steel
- Position: Front
- Certification: ISO/TS16949
- Classification: Disc
- Drum Brakes Classification: Brake Drum
- Main Market: South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
- Transport Package: Carton
- Specification: 350 x 116 x 109
- MOQ: 50 PCS
- Origin: China
- HS Code: 87089390
- Production Capacity: 50000 pcs/ year
- Package Size: 120.00cm * 100.00cm * 100.00cm
- Package Gross Weight: 200.000kg
Product Description of T16 Brake Chamber
- A = Length from mounting bracket to end of Spring Housing
- B = Length of Piggyback
- C = Dimension at rolled Spring Housing flange
- D = Dimension at Service Clampband
- E = Stud Spacing 4.75 in. (120.7mm)
- J = Pushrod Length from face of Service Housing
- K = Distance to Clevis Pin centerline from face of Service Housing
- S1 = Service Clampband position (0°)
- T = Air Port position (90°)
- Stud Type: 5/8-11 UNC Grade 5
Stud Length: 1.50 in. (38.1mm)
Pushrod Thread: 5/8-18 UNF
Air Port Threads: 3/8-18 NPTF
Maximum Air Pressure: 150 psi

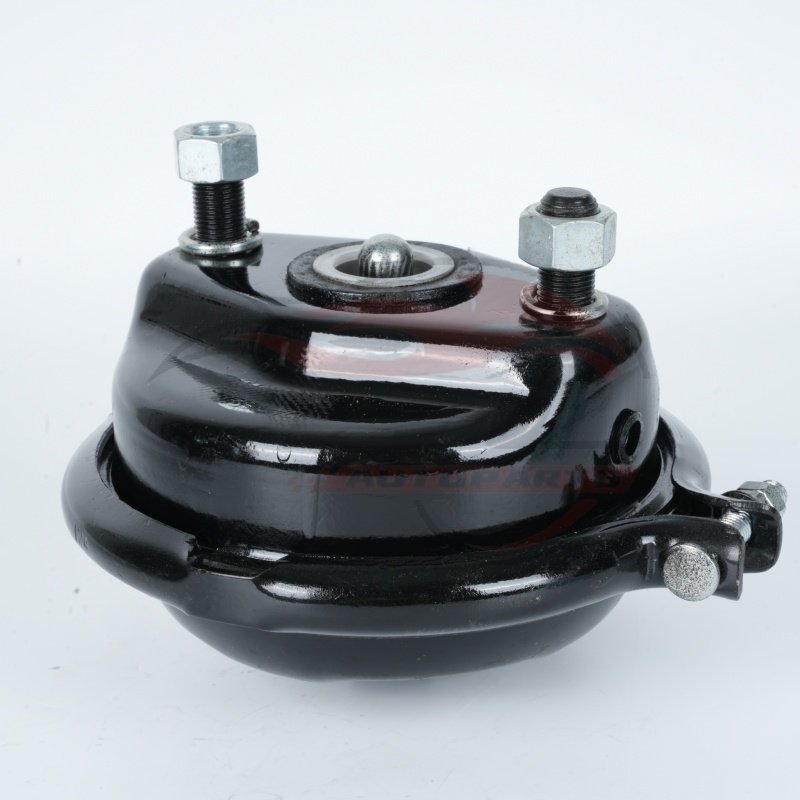

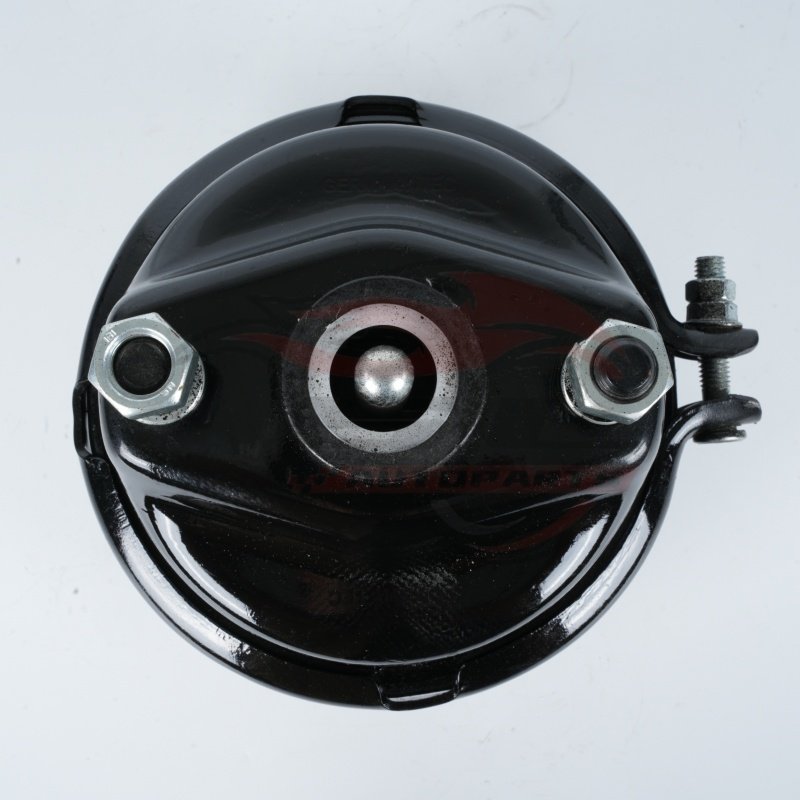

Pictures and Specifications of T16 Brake Chamber
| MODEL | STROKE | AIR INLET | BOLT THREAD | DESCRIPTION | PUSH ROD THREAD | PUSH ROD LENGTH |
|---|---|---|---|---|---|---|
| T12 | 57 | 2-M16x1.5 | M16x1.5 | 76.2 | M16x1.5 | 200MM |
| T16 | 57 | 3/8″NPT | 5/8″-11UNC | 120.7 | 5/8″-18UNF | 285MM |
| T16 | 57 | M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 285MM |
| T16 | 57 | 2-3/8″NPT | M16x1.5 | 120.7 | M16x1.5 | 285MM |
| T16 | 75 | 2-M16x1.5 | M16x1.5 | 76.2 | M16x1.5 | 193MM |
| T20 | 57 | 3/8″NPT | 5/8″-11UNC | 120.7 | 5/8″-18UNF | 285MM |
| T20 | 57 | M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 285MM |
| T20 | 57 | 2-3/8″NPT | 5/8″-11UNC | 120.7 | 5/8″-18UNF | 285MM |
| T20 | 57 | 2-M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 285MM |
| T20 | 57 | 2-3/8″NPT | 5/8″-11UNC | 120.7 | 5/8″-18UNF | 285MM |
| T20-A | 75 | 2-M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 197MM |
| T24 | 64 | 3/8″NPT | 5/8″-11UNC | 120.7 | 5/8″-18UNF | 285MM |
| T24 | 64 | M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 330MM |
| T24 | 64 | 2-3/8″NPT | 5/8″-11UNC | 120.7 | 5/8″-18UNF | 285MM |
| T24 | 64 | 2-M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 330MM |
| T30 | 64 | 3/8″NPT | M16x1.5 | 120.7 | M16x1.5 | 330MM |
| T30 | 64 | M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 330MM |
| T30 | 64 | 2-3/8″NPT | 5/8″-11UNC | 120.7 | 5/8″-18UNF | 285MM |
| T30 | 64 | 2-M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 330MM |
| T30 | 64 | 2-3/8″NPT | 5/8″-11UNC | 120.7 | 5/8″-18UNF | 285MM |
| T30-C | 64 | 2-M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 190MM |
| T30 | 75 | 2-M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 186MM |
| T36 | 64 | M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 320MM |
| T36 | 64 | 2-3/8″NPT | 5/8″-11UNC | 76 | 5/8″-18UNF | 270MM |
| T36 | 64 | 2-M16x1.5 | M16x1.5 | 120.7 | M16x1.5 | 285MM |
Product Description of T16 Brake Chamber
This product is a heavy-duty Brake Chamber model T16, designed to deliver reliable braking performance for commercial vehicles. Engineered with robust steel construction and precision manufacturing, this brake chamber provides dependable operation in demanding transportation applications. Certified to ISO/TS16949 quality standards, this essential brake system component ensures optimal safety and performance for heavy-duty vehicles.
The T16 brake chamber features comprehensive technical specifications including a maximum air pressure rating of 150 psi and standardized dimensions of 350 x 116 x 109 mm. The component includes 5/8-11 UNC Grade 5 studs with 1.50″ length, 5/8-18 UNF pushrod threads, and 3/8-18 NPTF air port threads. With a pushrod length of 285mm from the face of the service housing and 4.75″ (120.7mm) stud spacing, this brake chamber is designed for front-position installation in commercial vehicle brake systems.
Packaged securely in protective cartons with a minimum order quantity of 50 pieces, this brake chamber is produced in China with an annual production capacity of 50,000 units. The product serves global markets including North and South America, Europe, Asia, Africa, and Oceania. Each unit undergoes rigorous quality testing to ensure reliable performance and durability under extreme operating conditions.
This T16 brake chamber represents a critical component in commercial vehicle braking systems, providing the necessary air pressure conversion to mechanical force for effective brake operation. The manufacturer maintains strict quality control measures throughout the production process, ensuring that each brake chamber meets the highest standards of performance and reliability required for heavy-duty transportation applications across international markets.
Production process
Packaging& Shipping
Why Choose Our T16 Brake Chamber?
With extensive expertise in commercial vehicle braking systems, we deliver premium brake chamber solutions designed for reliability and performance in demanding applications. Our T16 model represents the perfect combination of robust construction and precision engineering for heavy-duty vehicles. Here’s why professionals worldwide trust our product:
Heavy-Duty Steel Construction: Engineered from high-quality steel, our brake chamber offers exceptional durability and impact resistance. The robust construction ensures reliable performance under maximum air pressure of 150 PSI, providing long service life in the most challenging operating conditions.
Precision Engineering: Designed with standardized 3/8-18 NPTF air ports and 5/8-18 UNF pushrod threads, our T16 chamber guarantees perfect compatibility and seamless integration with existing brake systems. The 57mm stroke provides optimal braking performance for commercial vehicles.
Quality Certified Excellence: Every brake chamber undergoes rigorous testing and is manufactured under ISO/TS 16949 certification, ensuring compliance with international automotive quality and safety standards.
Global Compatibility: Designed to meet diverse regional requirements, our brake chambers are trusted in markets across North America, South America, Europe, Asia, and beyond, offering reliable performance in various climatic conditions.
Proven Reliability: With a production capacity of 50,000 units annually and comprehensive quality control measures, we ensure consistent performance that commercial fleets can depend on for safe operations.
Professional Installation and Maintenance Guide
Safety First Protocol:
Park on level ground and securely chock all wheels
Completely depressurize air systems before beginning work
Wear appropriate personal protective equipment
Follow all manufacturer safety guidelines
Installation Procedure:
System Preparation:
Fully release air pressure from brake system
Clean mounting surface thoroughly
Inspect all components for damage
Chamber Installation:
Position chamber with proper orientation
Secure with 5/8-11 UNC Grade 5 mounting bolts
Torque to manufacturer’s specifications (typically 35-40 ft-lbs)
Connect air lines to 3/8-18 NPTF ports
Linkage Connection:
Connect pushrod with 5/8-18 UNF thread
Ensure proper clevis pin installation
Verify smooth operation without binding
Maintenance Best Practices:
Regular inspection every 25,000 miles or 3 months
Check for air leaks at connections and diaphragm
Monitor pushrod travel (maximum 57mm)
Inspect for corrosion or damage
Keep detailed maintenance records
Performance Benefits:
Consistent braking performance
Reliable air pressure handling up to 150 PSI
Reduced maintenance requirements
Enhanced safety features
Long service life
Technical Specifications:
Stroke: 57mm (2.25″)
Pushrod Thread: 5/8-18 UNF
Air Port Thread: 3/8-18 NPTF
Mounting Bolt: 5/8-11 UNC Grade 5
Maximum Pressure: 150 PSI
Stud Spacing: 120.7mm (4.75″)
Troubleshooting Tips:
If brake drag occurs, check pushrod adjustment
For air leaks, inspect diaphragm and connections
If braking power decreases, check stroke length
Regular cleaning prevents corrosion buildup
Professional Recommendation: Always consult vehicle manufacturer’s specifications for proper installation procedures and torque values. Regular inspection of your brake chamber is essential for maintaining optimal braking performance and overall vehicle safety. Our chambers are designed for easy maintenance and long-term reliability.
